5 Liter Rotary Evaporator

Extraction Product Series

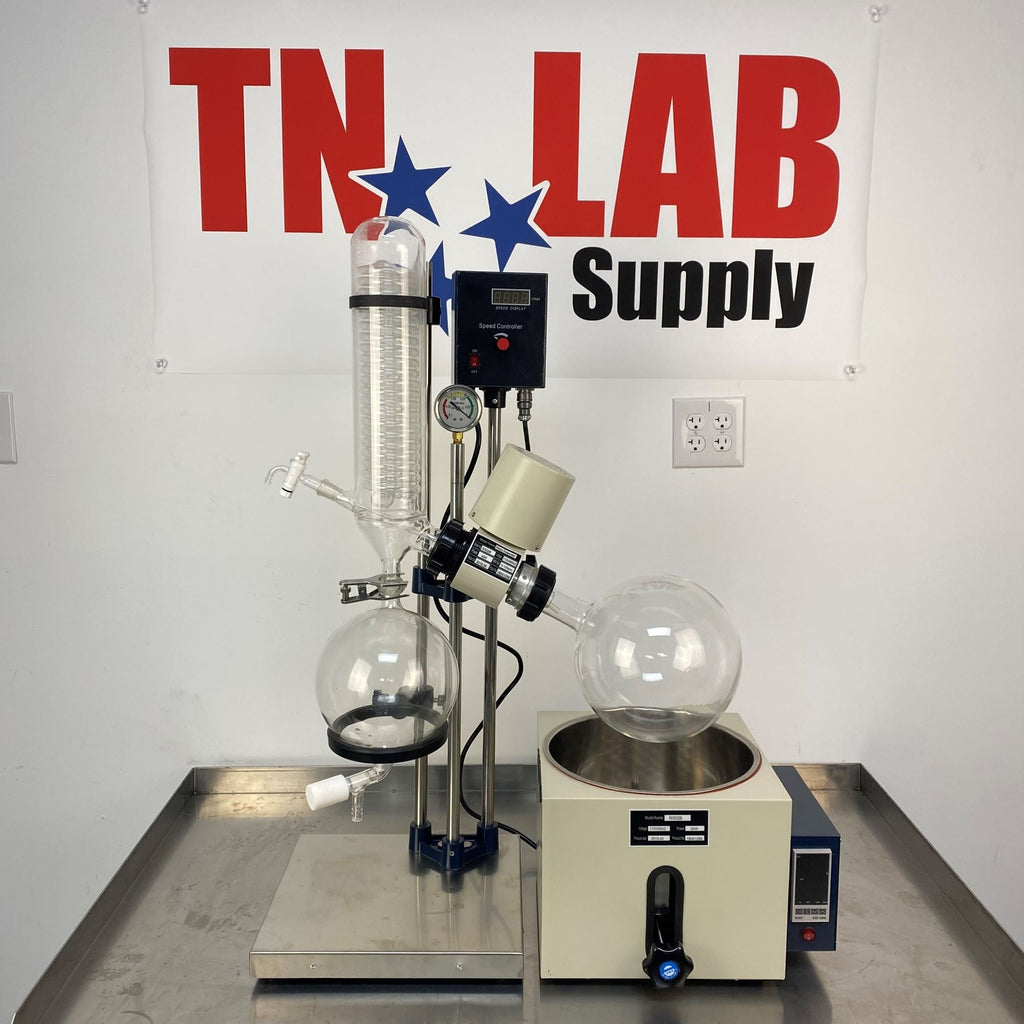

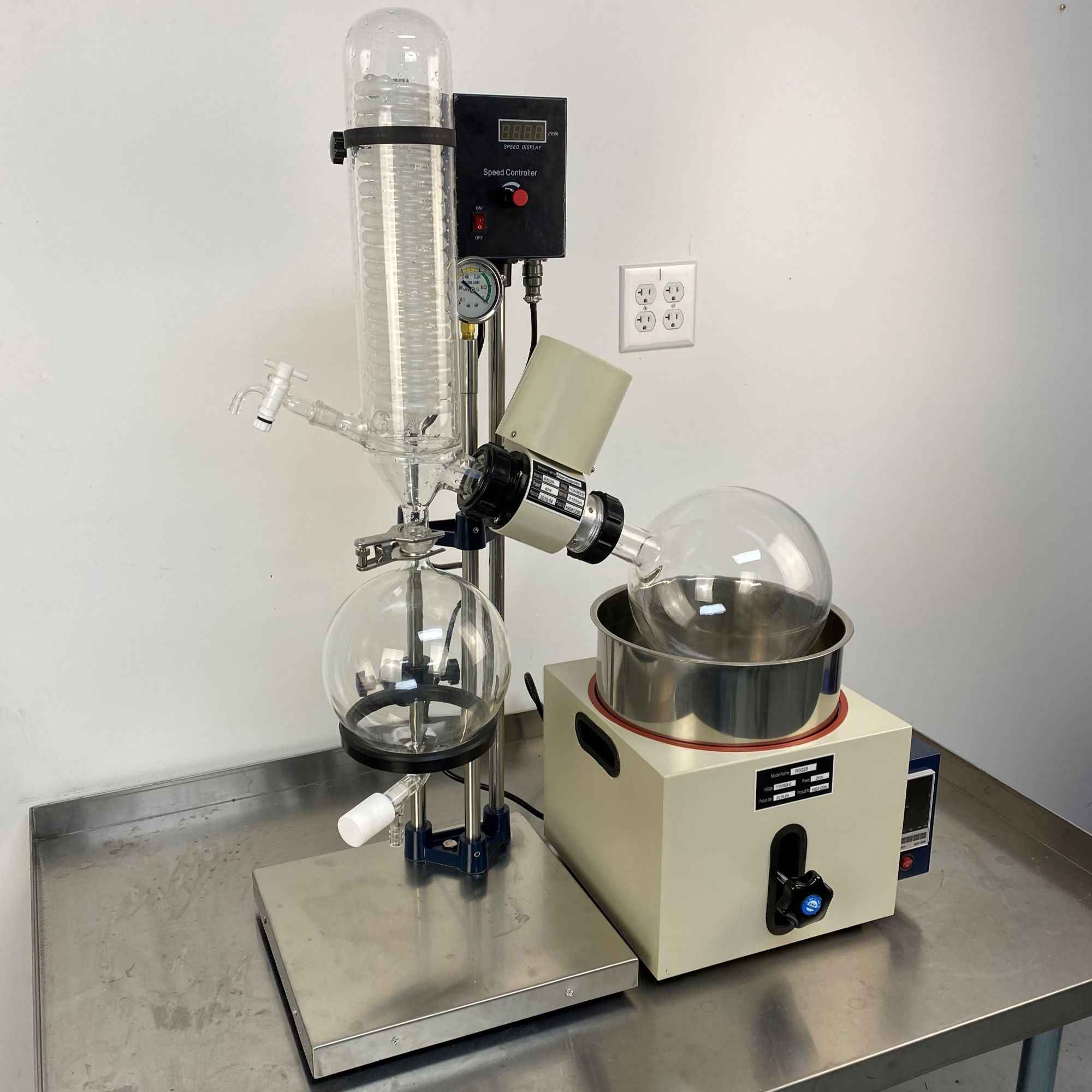

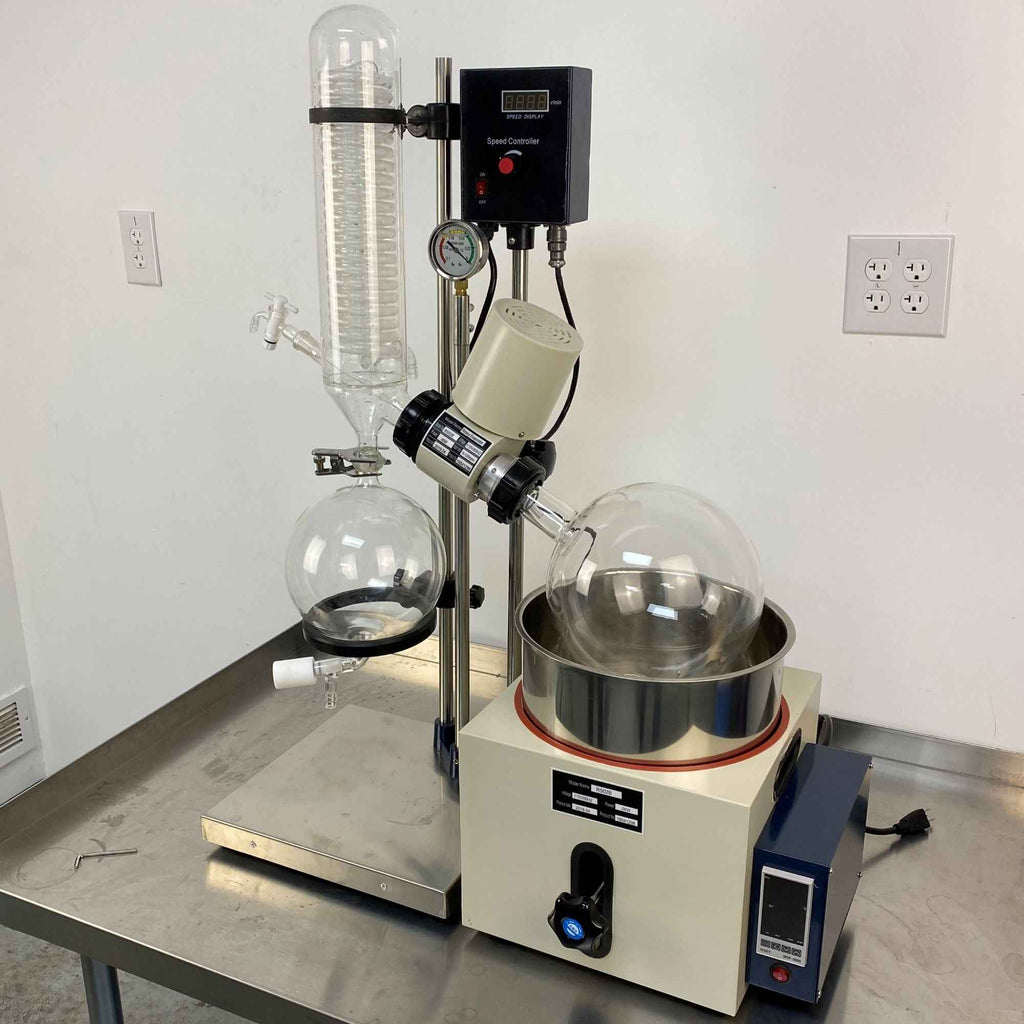

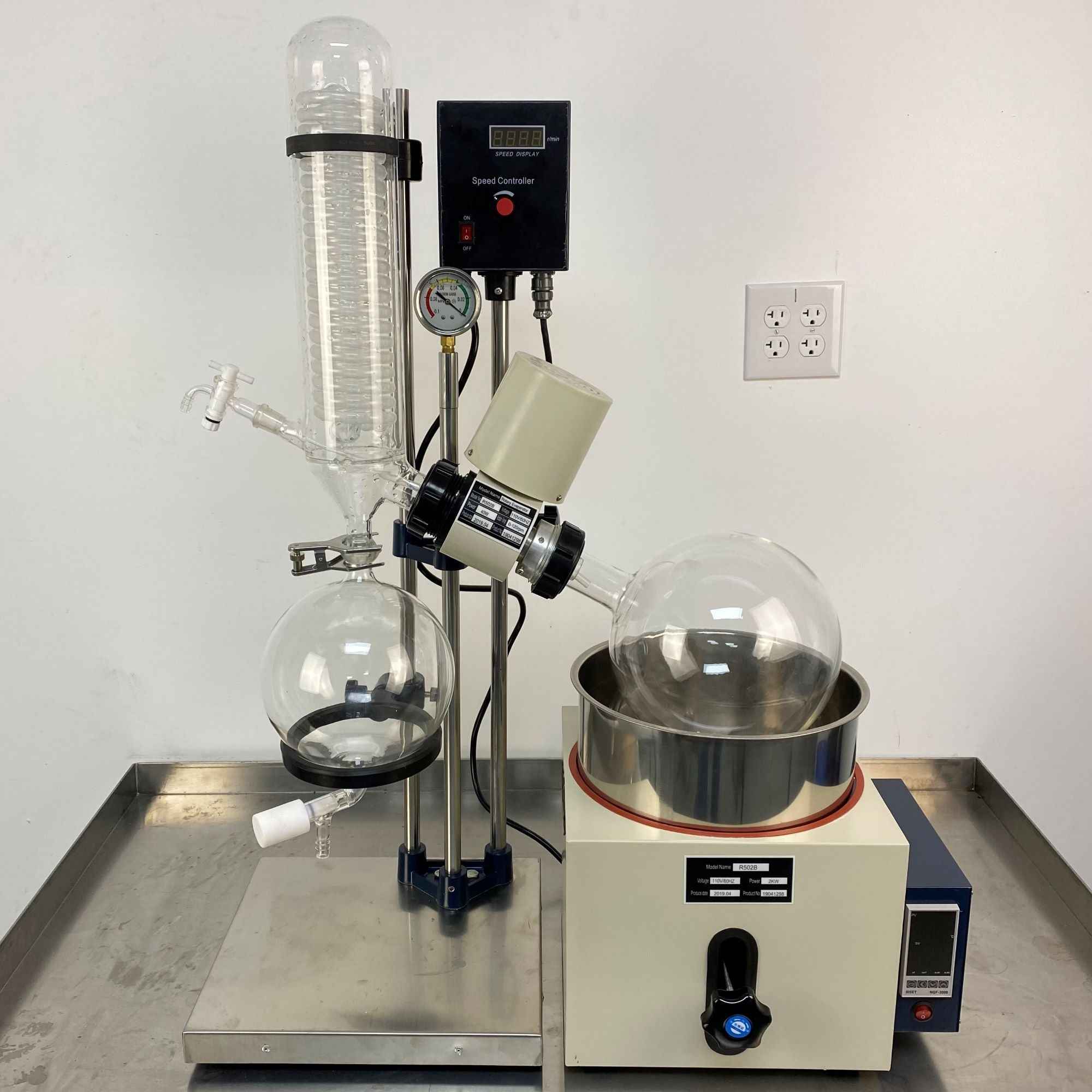

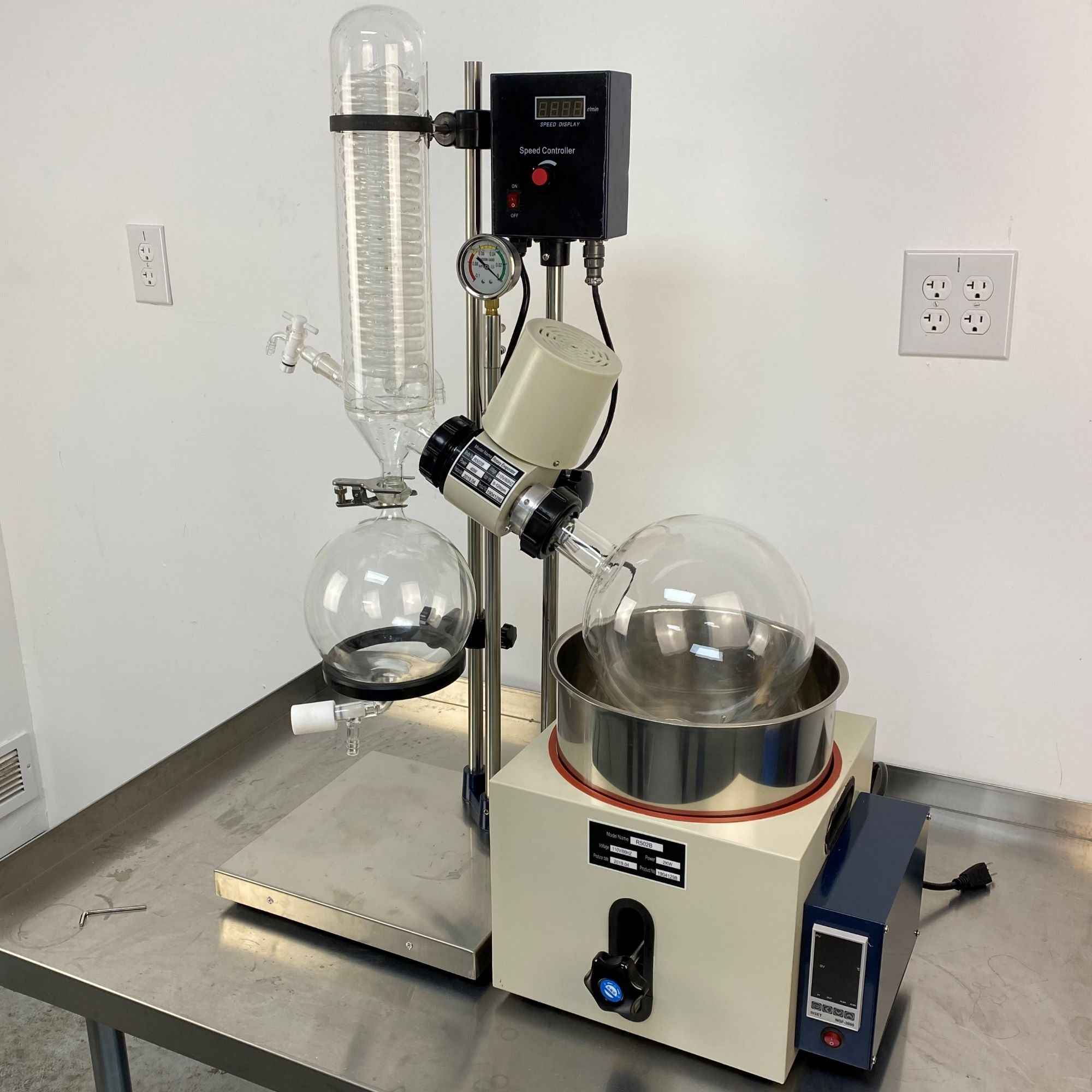

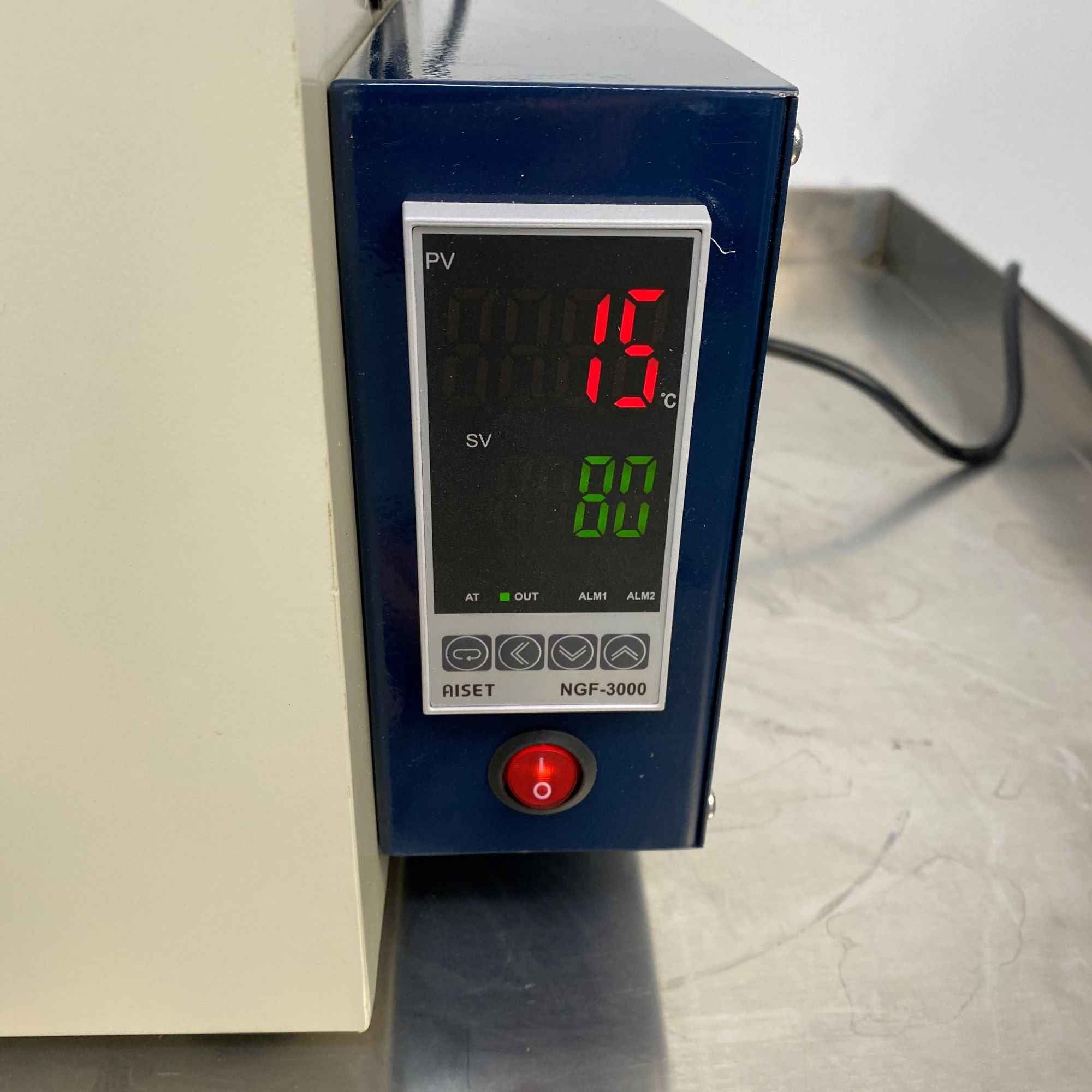

The TN LAB 5L Rotary Evaporator is a high performance system at an outstanding price.  Digital 40w motor speed control, digital 600w water bath temperature control, vacuum gauge, 110v, manual lift, stainless steel construction and thick-wall borosilicate glass are all part of this inclusive system.

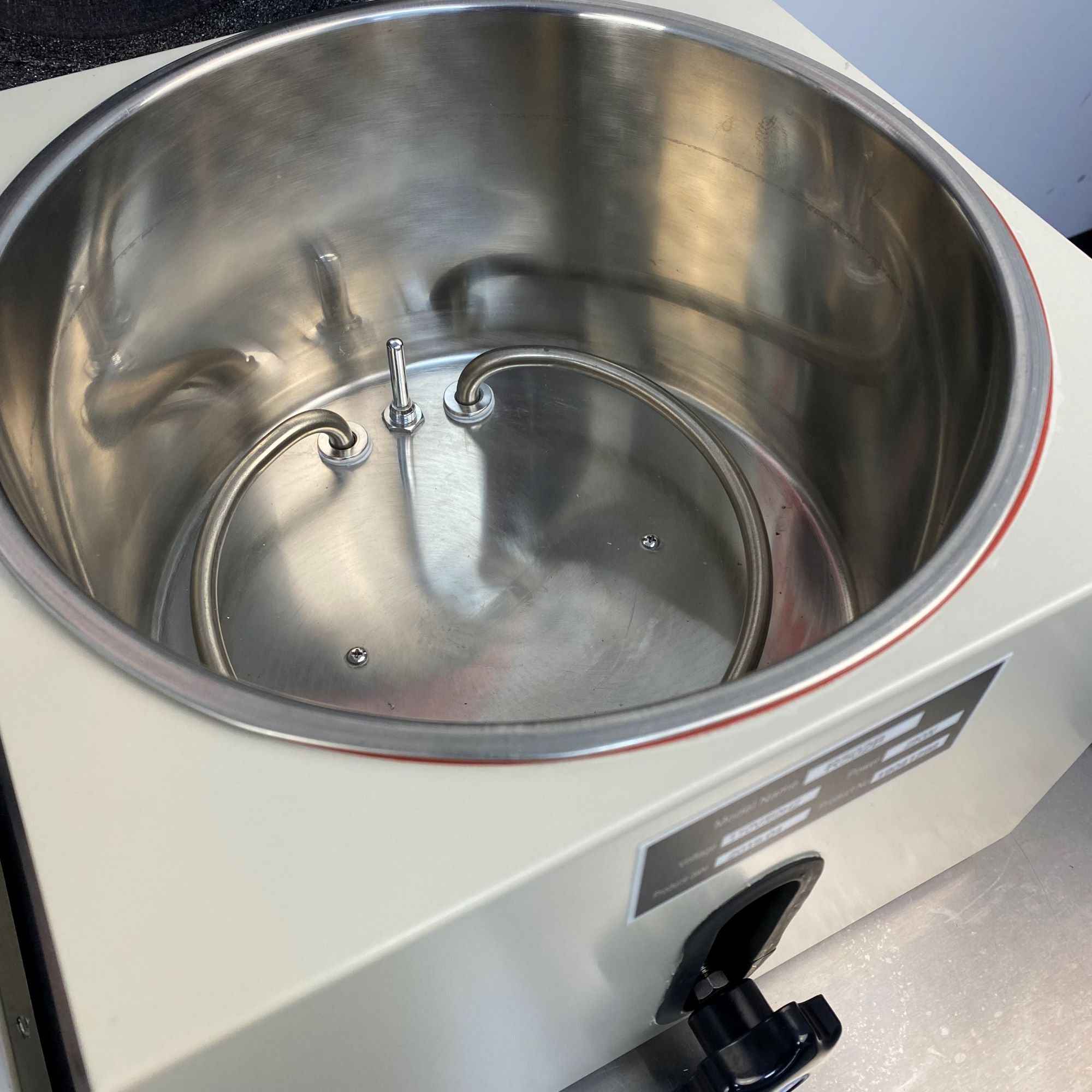

The rotary evaporator comes with vertical distillation borosilicate glassware and digital temperature & rotation control.  The bath volume allows for rapid heating times and excellent temperature control. The condenser unit is specifically designed to use the glass tubes surface area extremely efficiently increasing distillation rates

- Rotary flask: 5 L; Collection flask: 5 L
- Motor power: 40 W; Oil bath power: 2 KW
- Rotating speed: 0-120 rpm
- Vacuum degree: <133 pa
- Lifting mode: Water bath manual lifting
- Temperature control range: 0-99(250) ℃
- Condenser: Vertical condenser
- Power supply: 110V/60Hz

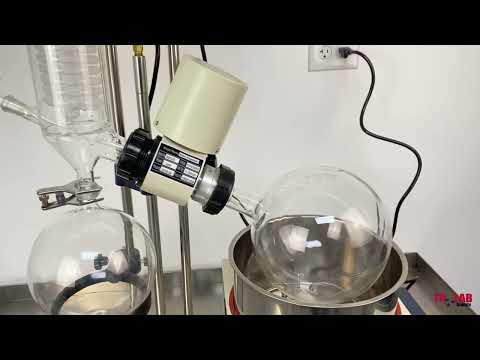

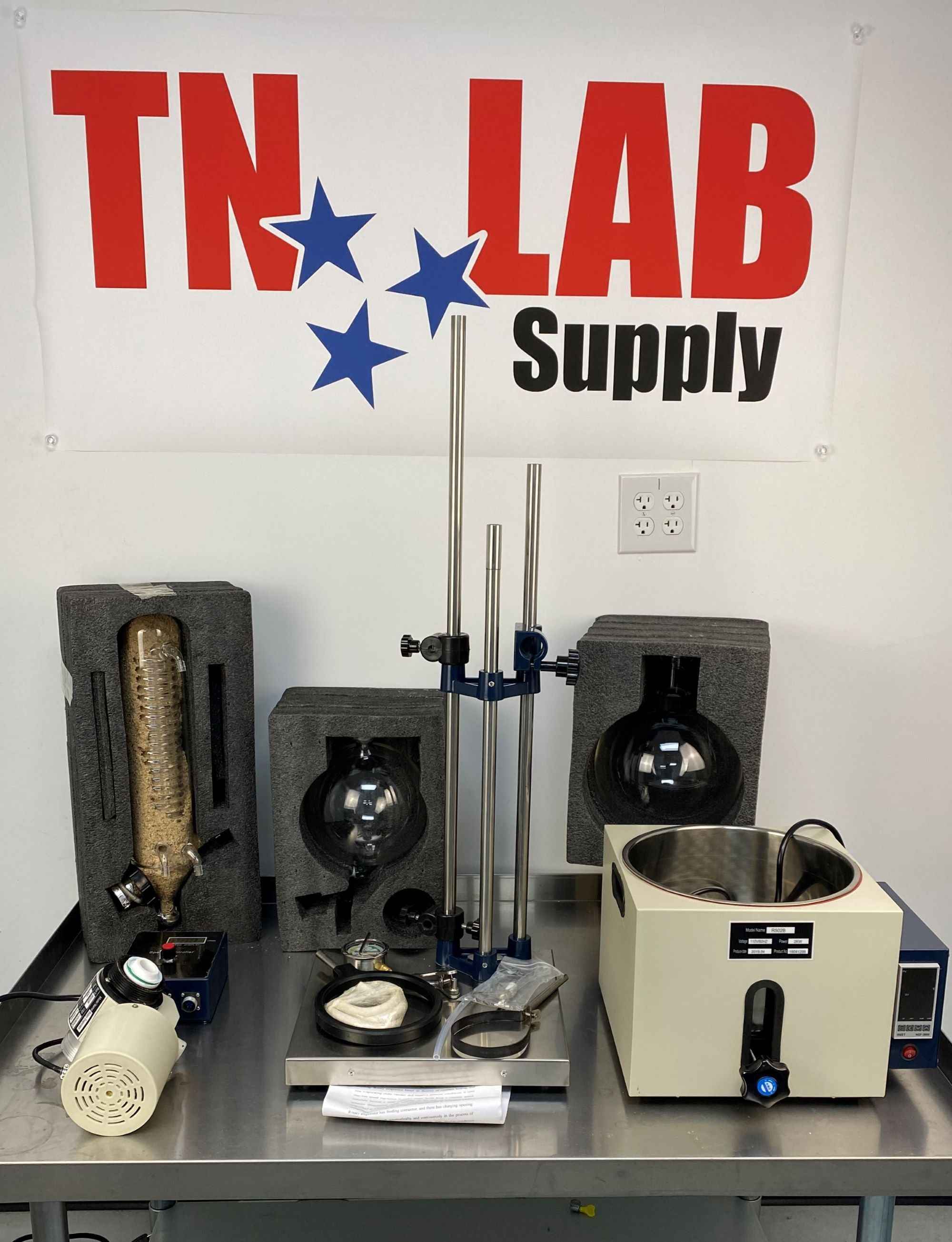

Videos are available showing final operation of this 5L Rotary Evaporator System and showing the unpacking, items, and assembly. Assembly will take a novice about 1 hour, plus time to clean out the protective sawdust inside the condenser.

Please note: The TN Lab 5L Rotary Evaporator System comes in 1 long wooden crate, as shown. The system is shipped via freight due to its size and weight, 100lbs.
